Carbon Coating Heating Panels & Electric Radiators in Pakistan
🔥
48V
CE
🛞
1–2 yr
Warmth Without the Boiler Room
Why Choose Carbon Heating Over a Conventional Hydronic System?
| Conventional boiler + piping + radiators | Carbon coating heating panel | |
|---|---|---|
| Boiler | Required | Not required |
| Piping network | Required | Not required |
| Installation | Plumbing and civil work, longer timeline | Wall-mount or free-standing, plugs into electrical supply |
| Leakage risk | Possible at pipe joints over time | No water circuit, so no pipe leakage |
| Servicing | Boiler and system servicing | Minimal maintenance |
| Heating by room | Zoned through the pipe network | Panel placed room by room, as needed |
Designed for Efficient Electric Heating
50–70%
Quick
Silent
Our Carbon Heating Range
Hararet Glass Panel Heater: GP100 & GP120
- 4mm tempered-glass front surface
- Solid colour options: black or white
- Glass breakage protection and glass fuse protection
- Surface temperature protection and thermal control protection
- Built-in residual current device (RCD)
- Mobile control infrastructure
- Wall-mount with bracket, or use freely on wheeled feet
- Quiet operation, quick heat-up
| Specification | GP100 | GP120 |
|---|---|---|
| Power | 700–1000 W | 1000–1250 W |
| Dimensions (H×W×D) | 50 × 100 × 5 cm | 50 × 120 × 5 cm |
| Voltage | 48 V | 48 V |
| Frequency | 50–60 Hz | 50–60 Hz |
| Glass surface temperature | 120 °C | 120 °C |
| Weight | 9.5 kg | 15 kg |
| Indicative heating area | 10–12 m² | 15–20 m² |

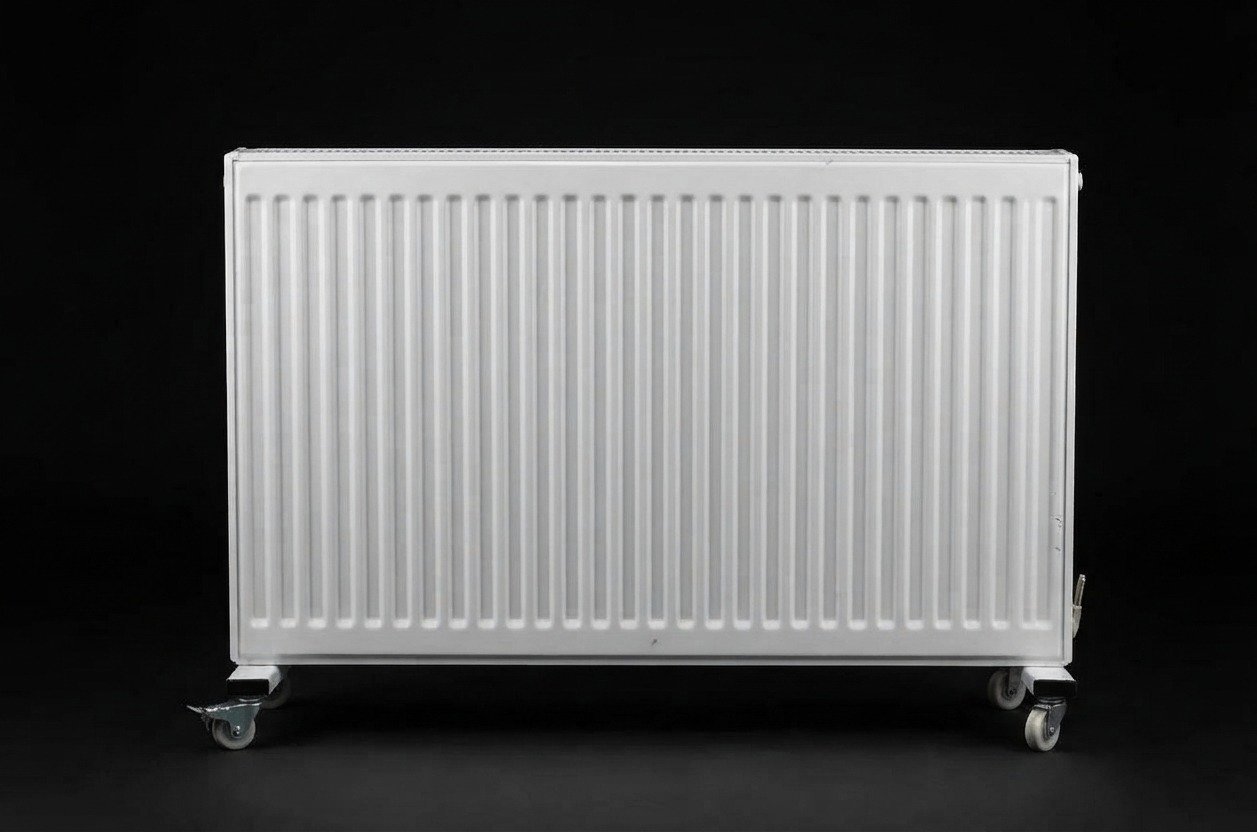

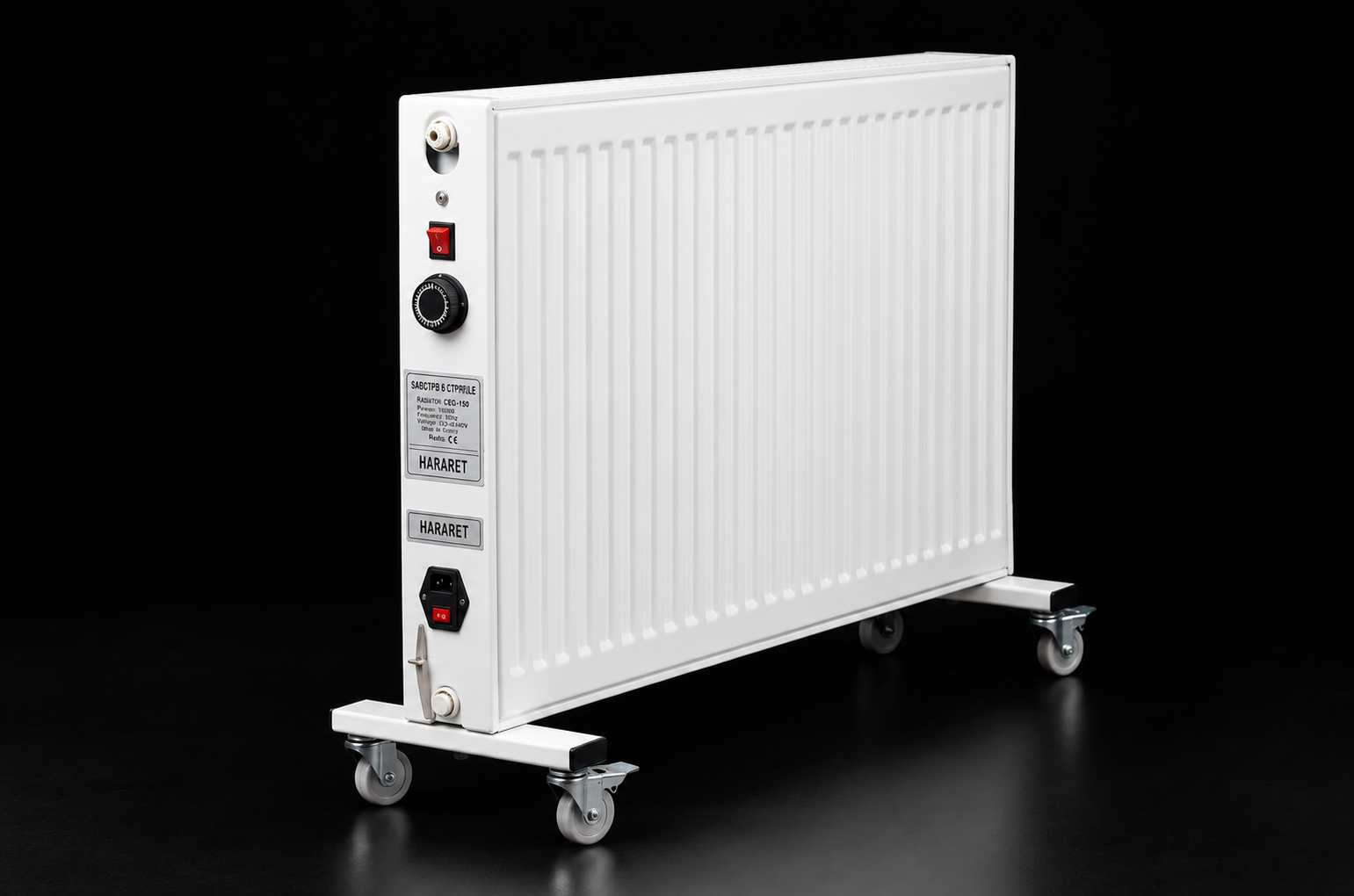

Hararet Carbon Electric Panel Radiator: PH60, PH100 & PH120
- Carbon liquid coating technology
- 48V operation via built-in transformer
- Surface temperature, power control setting and thermal control protection
- Built-in residual current device (RCD)
- Designed to work against mold and humidity, per manufacturer
- Wall-mount with bracket, or use freely on wheeled feet
- Quiet operation, quick heat-up
| Specification | PH60 | PH100 | PH120 |
|---|---|---|---|
| Power | 700–1000 W | 1000–1250 W | 1000–1250 W |
| Dimensions (H×W×D) | 60 × 60 × 10 cm | 60 × 100 × 10 cm | 60 × 120 × 10 cm |
| Voltage | 48 V | 48 V | 48 V |
| Frequency | 50–60 Hz | 50–60 Hz | 50–60 Hz |
| Surface temperature | 70–100 °C | 70–100 °C | 70–100 °C |
| Weight | 20.4 kg | 32.1 kg | 38.4 kg |
| Indicative heating area | 8–10 m² | 13–15 m² | 16–18 m² |
Which One Should You Choose?
| If you need… | Choose |
|---|---|
| A heater that doubles as a design element | Glass Panel Heater (GP) |
| Lighter weight and a slim 5 cm profile | Glass Panel Heater (GP) |
| Higher output for bigger spaces | Electric Panel Radiator (PH) |
| A classic radiator look | Electric Panel Radiator (PH) |
| Not sure | Send us your room sizes on WhatsApp and we’ll recommend |
Built-In Safety, Certified to European Standards
48V Operation
Panels run on low voltage through a built-in transformer.
CE Certified
Meets European safety standards.
Built-in RCD
A residual current device is built into every unit.
Temperature Protection
Surface temperature protection and thermal control protection.
Insulated Exterior
All external components are coated in electrically insulating electrostatic powder paint.
Short-Circuit Protection
Short-circuit and power protection through the internal control board (GP series).
Simple Installation, Supported by Our Engineers
1. Site Survey
We check room size, insulation and electrical supply.
2. Model Selection
The right panels and quantity for each space.
3. Installation
Wall-mounted with the bracket, or placed freely on wheeled feet.
4. Testing
We connect, test and walk you through operation.
Where Carbon Heating Panels Work Best
Homes & Apartments
Room-by-room heating without a central system.
Villas & Farmhouses
Heating where gas or pipe infrastructure isn't practical.
Hotels, Resorts & Guest Houses
Quiet, safe heating for guest rooms and lounges.
Offices & Clinics
Clean installation with no downtime for plumbing work.
Shops & Restaurants
Compact units in customer-facing areas.
Retrofit Projects
Adding heating to existing buildings without opening floors or walls.
We Don't Just Supply Heaters. We Engineer the Solution.
- Site survey and heat-load assessment
- Correct model selection and sizing
- Supply and professional installation
- Testing and handover
- Technical support after installation
Frequently Asked Questions
It is an electric heating panel with a carbon-based heating coating instead of resistance wires. When powered, the coating radiates heat into the room. The technology has been used in Europe for many years.
No. The panels run on electricity only. There is no boiler, no water circuit and no piping network.
Yes. The panels operate at 48V, are CE certified, include a built-in RCD and have surface temperature and thermal protection.
The rated power is 700–1250 W depending on the model. As a reference, a 1,000 W load running continuously for one hour uses one unit (1 kWh). Real consumption depends on room size, insulation, thermostat settings and hours of use, so it will usually be lower than the maximum rating.
Our team handles installation so the model, position and electrical connection are right for your space. The panels are wall-mounted with a bracket or placed on wheeled feet.
Each panel heats the room it is placed in. For a whole house, we survey the building and recommend the number and models of panels. For very large buildings, we will tell you honestly if a different system makes more sense.
The Glass Panel Heater has a glass surface temperature of about 120°C. The Electric Panel Radiator has a surface temperature of 70–100°C. Both include surface temperature protection. Keep flammable materials and fabrics away from the surface.
The Glass Panel Heater carries a 1-year warranty and the Electric Panel Radiator a 2-year warranty. Warranty terms apply.
The panels are manufactured in Menemen, İzmir, Türkiye, using carbon heating technology used across Europe.
We are based in Islamabad and serve Islamabad, Rawalpindi, Murree and projects across Pakistan. Contact us with your location.
Get the Right Carbon Heating Solution for Your Space
📞 +92 320 5660004 | 🌐 ute.com.pk
Serving Islamabad, Rawalpindi, Murree and projects across Pakistan.
